| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS |
| Delivery Period: | 90 days after all the technical requirements are confirmed |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 200 sets/year |

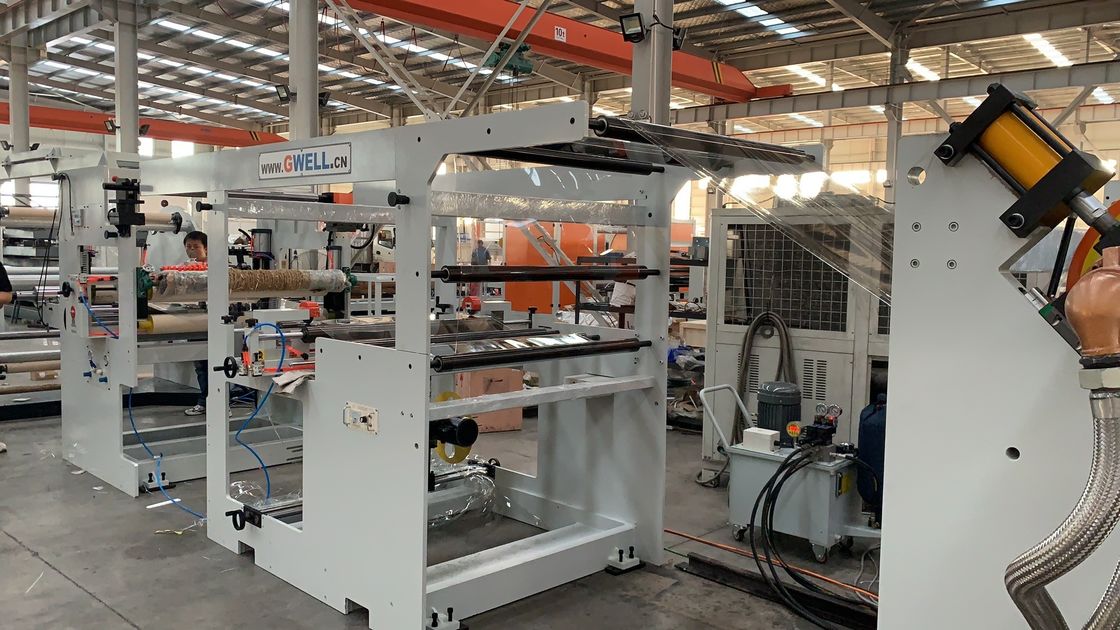

High-end PP Sheet Production Line PP Thermoforming Sheet Extrusion Machine
The common PP/PS sheet extrusion production lines are single machine single-layer sheet production lines and double machine co extrusion three-layer sheet production lines. There are also multi machine co extrusion multi-layer production lines, which can process composite sheet production lines with up to 7-9 layers, such as high barrier EVOH multi-layer co extrusion sheets. This model can process polyolefin materials such as PP, PS, PE, etc.
1. Specification of PP Thermoforming Sheet Extrusion Machine:
| Type of machine | GWS120 single screw | GWS110 single screw | GWS105 single screw |
| Width of product | 600mm - 1220mm | 600mm - 1220mm | 600mm - 1220mm |
| Thickness of product | 0.15mm - 3mm | 0.15mm - 3mm | 0.15mm - 3mm |
| Output | 200KG/H - 1000KG/H | 200KG/H - 1000KG/H |
200KG/H - 1000KG/H |
2. Introduction of PP Thermoforming Sheet Extrusion Machine
Using multiple extruders co extrusion technology, we produce multi-layer co extruded composite PP and PS sheets, such as ABA, ABCBA, ABCDCBA and other multi layer structures, which are widely used in thermoforming, printing, hardware packaging, electronic trays, flocking, food, clothing, tools, toys, stationery sheets, decorative sheets, etc.
*The inclined horizontal tablet structure makes operation and maintenance more convenient.
*The cylinder has independent power, and the linear speed is synchronized with the extruder speed through closed-loop control.
*The whole machine adopts PLC control to achieve automatic control of parameter setting, data calculation and feedback, alarm and other functions.
*Jinweier independently developed an electronic control operating system
Main uses of PP/PS sheet:
*PP/PS vacuum formed sheet
*PP/PS single-layer sheet, PP/PS co extruded dual color sheet, PP double-sided high transparency sheet, and other sheets used in the vacuum packaging industry.
*PP stationery sheet
*PP transparent sheet, frosted sheet (coarse sand, fine sand), two-color sheet and other sheets used in the stationery packaging industry.
*PP microcellular foam sheet has unique advantages. PP foam sheet with a density greater than 0.45g/m3 has good bending resilience, is not easily deformed, and has broad prospects for use in the folder field; PP foam sheets with a density of 0.6g/m3 have excellent mechanical properties and have a very broad prospect in the field of automotive interior decoration; Can be processed into carpet support materials, shading panels, sound insulation panels, luggage racks, interior decorations, covers, boxes, etc; PP foam sheets with a density of 0.3g/m3 have good flexibility and resilience, making them suitable for packaging, partition boards, and other fields.
