| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS |
| Delivery Period: | 90 days after all the technical requirements are confirmed |
| Payment Method: | T/T, L/C |
| Supply Capacity: | 200 sets per year |

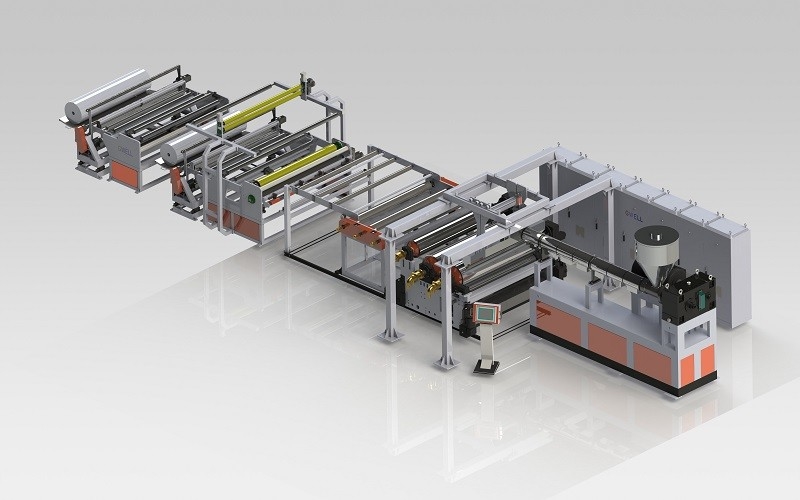

PVB Photovoltaic Film Making Machine Use Double Screw Extruder Quality After-sales Service
1. Comparison of PVB Photovoltaic film and EVA Photovoltaic film:
EVA is a thermosetting resin with cross-linking reaction; PVB is a thermoplastic resin with reproducibility and no cross-linking reaction;
The domestic glass curtain wall specification clearly puts forward the regulation of "application of PVB". BIPV photovoltaic modules can be made by PVB instead of EVA to achieve a longer service life. PVB Photovoltaic film making machine
PVB has strong adhesive properties, and its safety is higher than that of EVA Photovoltaic film;
EVA has many formulas, and the packaging process is not easy to control; the formula of PVB film is simple, the quality control is stable, and the shelf life is long;
PVB film has poor fluidity, which can prevent film overflow during processing.
At present, the packaging forms of photovoltaic modules mainly include glass-EVA-backsheet and glass-PVB-glass. I will describe the characteristics of EVA and PVB encapsulation films respectively.
Photovoltaic industry is a rapidly developing emerging industry that converts solar energy into electric energy. Silicon solar cell modules are mainly used in large-scale grid-connected power generation, off-grid power stations, BIPV photovoltaic building integration, etc. The encapsulation films mainly include EVA and PVB. PVB Photovoltaic film making machine
2. Machine model of PVB Photovoltaic film making machine
| Machine model | Single-screw GWS130 | Twin-screw GWP85/GWP52 | Twin-screw GWP95/GWP65 |
| Suitable material | PVB | ||
| Product structure | A | AB,ABA | AB,ABA |
| Product width | 1100mm - 1400mm | 1400mm-2600mm | 2400mm - 2800mm |
| Product thickness | 0.2mm - 0.8mm | ||
| Output | 350KG/H - 450KG/H | 500KG/H - 600KG/H | 650KG/H - 750KG/H |
